BACK940nm / 905nm Vertical-Cavity Surface-Emitting Laser Array
High uniformity and Reliability
Multi-partition Addressable
Suitable for short-pulse (ns) and high peak power operation
3D sensing such as dToF / LiDAR / etc.;
Front Radar
Gap-filler Radar
Intelligent Cockpit
| Product |
5结/40-400w | |||
|---|---|---|---|---|
| Emitter |
63-500 | |||
| Power(W) | 40-400 | |||
| Current(A) | 5-50 | |||
| Chip Design |
![]() |
![]() |
![]() |
![]() |
Typical performance curve
Slope Efficiency(W/A):3结3.20;5结4.70

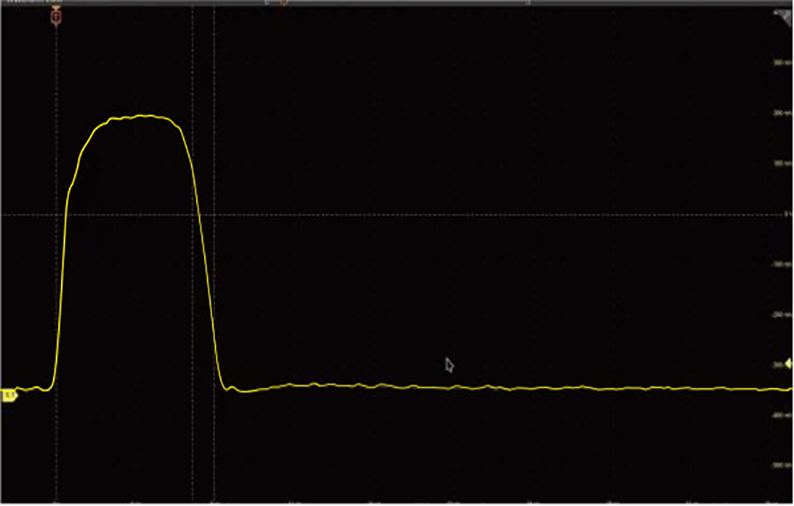

Tr/ Tf Diagram (Tr / Tf <1ns)

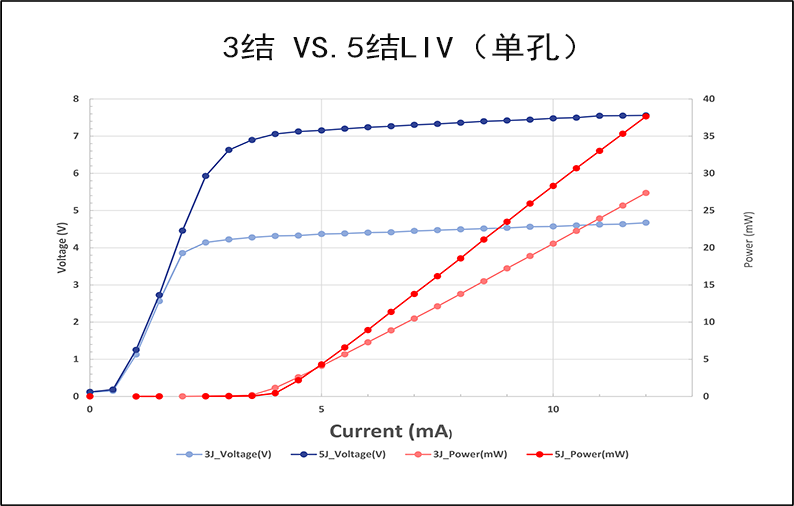

*Multi-junction LIV and TR / TF curves at 25 ℃
