Data Communication

DATA COMMUNICATION VCSEL

850nm Vertical-Cavity Surface-Emitting Laser

High reliability and uniformity, Low noise

Array configuration 1x4, 1x8, 1x12 available

Data rates from DC to 14Gbps/20Gbps/25Gbps NRZ/50Gbps PAM4

Data Center

HDMI

USB4 Type-C

Chip List

Product	10G	25G	25G 1×4	25G 1×8
Power(mW/emitter)	3	3	3	3
Voltage(V/emitter)	2.2	2.2	2.2	2.2
Current(mA/emitter）	7.5	7.5	7.5	7.5

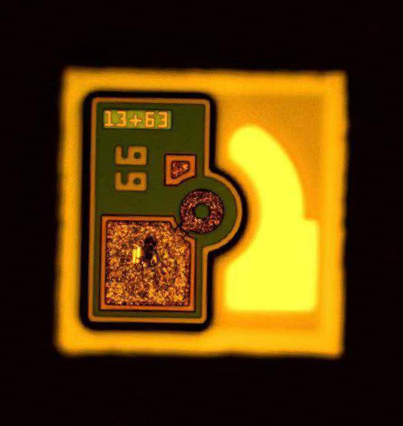

Chip Design

Typical performance curve

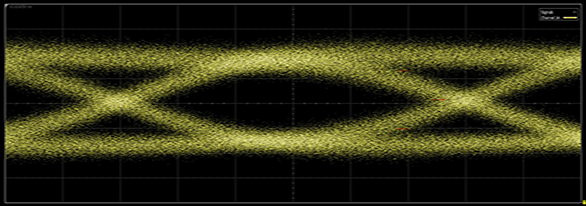

25G Eye Diagram

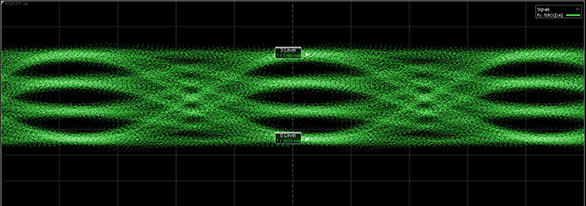

50G PAM4 Eye Diagram

*25G Eye Diagram and 50G PAM4 Eye Diagram of Data Communication at 25 ℃
